Small Scale Pyrolysis Equipment

Small Scale Pyrolysis Equipment

In Malaysia, if you have a small amount of plastic waste to dispose of and you want to make money from recycling them, then a small scale pyrolysis equipment might be very suitable for you. It is handy and cost-effective and is an ideal machine for a small scale waste pyrolysis. Beston designs and manufactures high quality small & mini pyrolysis machines and they are well-sold across the world now.

Small Scale Pyrolysis Equipment
Small Scale Pyrolysis Equipment

Beston Small Scale Pyrolysis Plant in the Philippines, Indonesia, and Dominica

  • small pyrolysis machine
    BLJ-10 in the Philippines
  • small pyrolysis unit

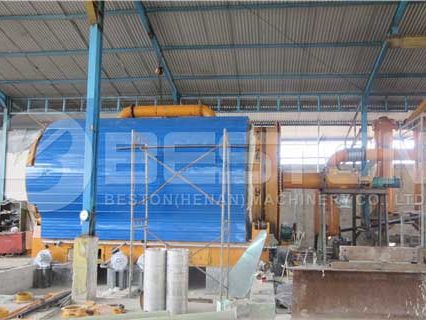

    BLJ-10 in Indonesia
  • small pyrolysis plant
    BLJ-6 in Dominica

Parameters and Specifications

Model BLJ-6 BLJ-10
Daily Capacity 6T 10T
Working Method Batch
Raw Materials Waste Plastic, Tyre, Rubber, Oil Sludge
Reactor Size D2.2*L6.0m D2.6*L6.6m
Pattern Horizontal & Rotary
Heating Materials Charcoal, Wood, Fuel Oil, Natural Gas, LPG, etc.
Total Power 24kw/h 30kw/h
Floor Area (L*W*H) 30*10*8m 30*10*8m
Operating Pressure Normal Pressure
Cooling Method Water Cooling
Service Life 5-8 Years
Mini Pyrolysis Plant
Beston Small Scale Pyrolysis Equipment for Sale

Although the small scale pyrolysis plant doesn’t have high output and high efficiency compared with the larger ones, there are still more and more customers choose small or mini pyrolysis plant. Why?

Reasons Why Choosing a Small Scale Pyrolysis Equipment

Customer’s Real Needs:

Beston small pyrolysis machine knows better of customers’ real needs. Not all the customers have quite a large amount of waste to treat. According to their amount of raw materials, they will have a different financial situation.

Therefore, budget and the amount of feedstock are the main reasons for the customers to consider of the mini pyrolysis machine.

Superiority of the Plant:

1. Space– the minimum size of the small scale pyrolysis plant is 30*10*8 m and it will save some cost on space for the customers.

2. Cost-effective– the price is affordable, and you can get return very quick from the waste you process, so choosing small pyrolysis unit is cost-effective

3. Easy to deliver, handle, operate and manage.

4. Emission Safety– the small capacity means the small emission. With the EU Environmental Protection Emission Standard and quite a small volume of emission, the small type pyrolysis plant has double security in emission safety.

small scale pyrolysis plant
Beston Small Scale Pyrolysis Plant for Sale

Flow Chat of the Working Process (Waste Tyre)

Small Scale Pyrolysis Equipment
Small Pyrolysis Plant Working Flow Chart

Small Scale Pyrolysis Equipment V.S. Large Scale Pyrolysis Equipment

Different Feeding and Discharging Methods

  • Small pyrolysis equipment: manpower feeding (or optional auto screw feeding); discharging of carbon black starts after the pyrolysis reactor cooling down.
  • Large type or fully continuous pyrolysis plant: auto screw feeding; 24 hours constantly working without waiting for the cooling of the reactor before discharging.

Same Configuration and Quality

  • Small pyrolysis machine shares the same working principle and a similar process of large pyrolysis plant. The configuration is also the same. The specific layout of the machine can be coordinated according to the real needs of the customers.
  • Quality guarantee: the small scale pyrolysis machine has the same high quality with the continuous one. Beston’s advanced production technology and strict production lines can make sure each part of the machine is perfect. For example, we use ultrasonic flaw detector to exam every piece of the machine before leaving the factory.

Different Output and Capacity

The maximum capacity of Beston MSW pyrolysis plant is 30 tons, and the minimum is 6 tons. The output will differ when the feedstock changes, but the more volume of feedstock you feed, the higher output it will be.

Small Scale Pyrolysis Equipment
Beston Mini Pyrolysis Machine in Turkey

Same Quality of the By-Product

  • No matter which kind of pyrolysis plant you choose from Beston, there will be the same finish products if you choose the same raw materials.
  • From a waste plastic pyrolysis machine, you can get pyrolysis oil and carbon black; from waste rubber tyres, you can get pyrolysis oil, carbon black and steel wires; for oily sludge, you can get pyrolysis oil and slag.
  • We can guarantee the quality of the by-product and can also supply follow-up processing machine to help the customers improve the quality of the by-products, such as the oil distillation machine, a machine that refines the pyrolysis oil into diesel oil.

Different Costs, Same Services & Quick-rewards

The larger machine has a higher price, so the small scale pyrolysis equipment is respectively cheap comparing with the other types of machines. However, Beston’s service never lets you down.

We can supply the following services for free,

  • Professional guide for preliminary business planning (pre-sale)
  • A specialized engineering team to help you with the installation, assembling and commissioning.
  • Regular returning visits to check the running situation of the equipment.
  • Online customer service to answer any questions you have about the equipment you have bought.
  • Free training for your working team about the operation techniques and knowledge.
Pyrolysis Plant in UK
Beston Engineers in the UK
Helped with the Foundation Construction Work

Owing to the above-said features, the small scale pyrolysis equipment has gained a lot of popularity in recent years. Because of the mature technology of pyrolysis and market recognition, Beston has exported our small scale pyrolysis units to the Philippines, Dominica, Canada, the UK, Turkey, and Indonesia, etc. Wanna learn more details of Beston small pyrolysis plant for sale, leave your message to us freely right now or find us on FaceBook.
